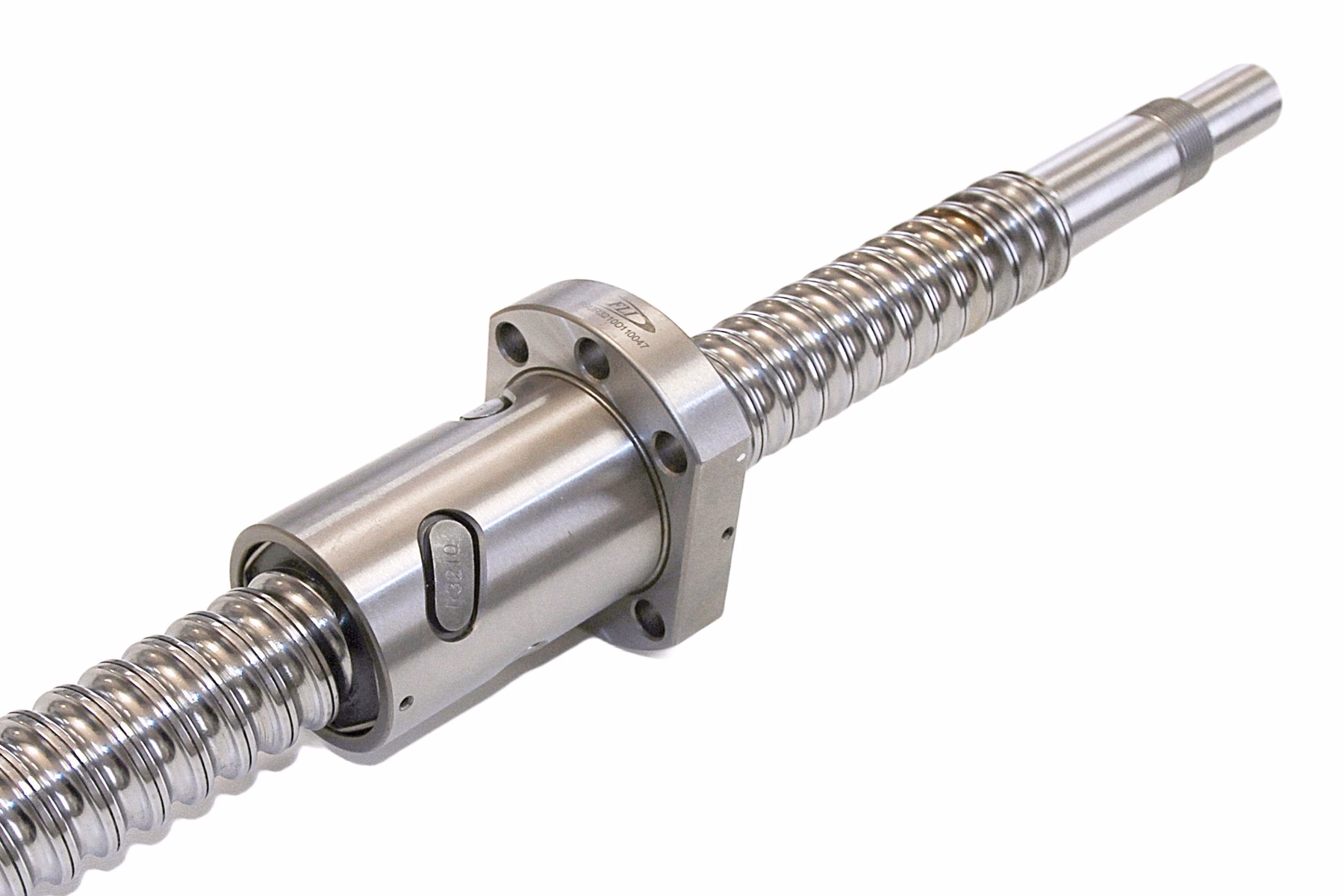

SFU2010 Ball Screw 500mm with Nut

SFU2010 Ball Screw 500mm with Nut

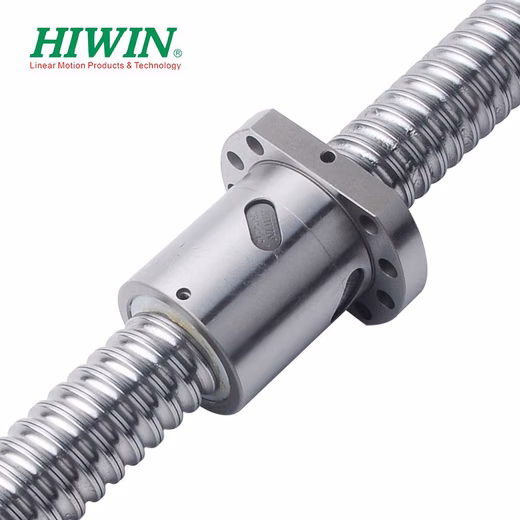

The SFU2010 is a precision ball screw assembly designed for CNC machines and industrial linear motion systems. It converts rotary motion into smooth and accurate linear movement with low friction, high efficiency and good positioning repeatability.

This version is supplied with a matching SFU2010 ball nut and has a total screw length of 500 mm.

Key Features

• SFU2010 precision ball screw
• 20 mm screw diameter
• 10 mm lead
• 500 mm total length
• Matching ball nut included
• Smooth and efficient linear motion
• Low friction compared with conventional lead screws
• Suitable for high-speed CNC axis movement
• Good rigidity and repeatability
• Ideal for CNC routers, automation and machine-building projects

Technical Specifications

• Model: SFU2010
• Screw Diameter: 20 mm
• Lead / Pitch: 10 mm
• Total Length: 500 mm
• Ball Nut: Included
• Nut Type: SFU2010
• Ball Diameter: approximately 3.175 mm
• Number of Circuits: 2
• Nut Flange Diameter: approximately 58 mm
• Nut Body Diameter: approximately 36 mm
• Nut Overall Length: approximately 42 mm
• Flange Thickness: approximately 10 mm
• Mounting Hole: M5

Machined Shaft Ends
The shaft ends are machined for installation with compatible BK15 and BF15 support units.

Important: BK15 and BF15 support units are not included with this product and must be purchased separately if required.

Applications
Suitable for:

• CNC router X/Y/Z axes
• CNC milling machines
• Plasma and laser machine motion systems
• Industrial automation equipment
• Linear positioning systems
• Custom machine builds

Package Contents

• 1 × SFU2010 Ball Screw – 500 mm
• 1 × Matching SFU2010 Ball Nut
