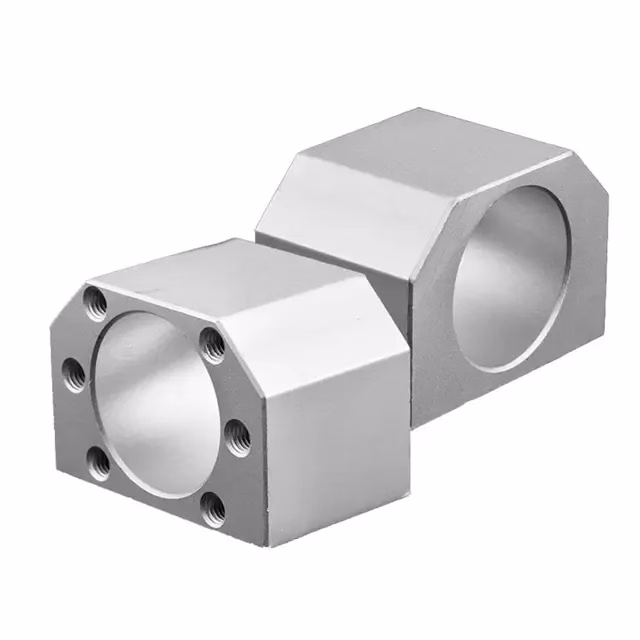

DSG20H Ball Nut Housing for SFU2005 / SFU2010
DSG20H precision ball nut housing designed for SFU2005 and SFU2010 ball screw nuts. Rigid metal construction for secure mounting in CNC linear motion and automation systems.
- Cash on delivery
- Pay when your order arrives
- Delivery available
- Cost confirmed at checkout
Product details
DSG20H Ball Nut Housing for SFU2005 / SFU2010
The DSG20H is a rigid ball nut housing designed to securely mount compatible SFU ball nuts in CNC and industrial linear motion systems. It provides a strong mechanical connection between the ball nut and the machine carriage, helping maintain alignment and stable motion under load.
This model is suitable for common SFU2005 and SFU2010 ball nut assemblies.
Key Features
- DSG20H ball nut housing
- Compatible with SFU2005 and SFU2010 ball nuts
- Strong metal construction
- Rigid mounting for CNC linear axes
- Helps maintain accurate ball nut alignment
- Suitable for X, Y and Z axis assemblies
- Easy integration into CNC machine carriages
- Suitable for routers, milling machines, plasma systems and automation equipment
- Designed for precision linear motion applications

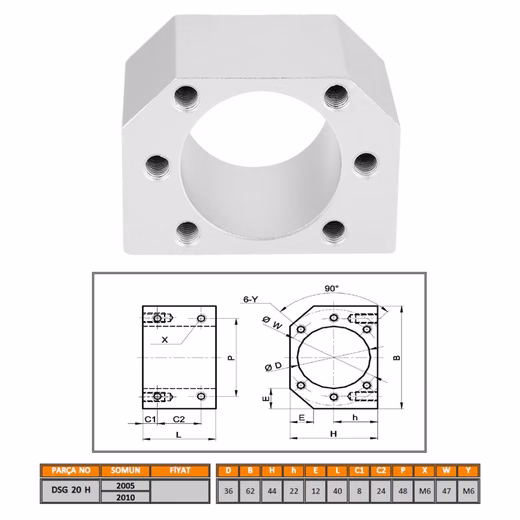

Technical Specifications
- Model: DSG20H
- Compatible Ball Screw Series: 2005 / 2010
- Main Bore Diameter (D): 36 mm
- Body Width (B): 62 mm
- Body Height (H): 44 mm
- Inner Height (h): 22 mm
- E: 12 mm
- Overall Length (L): 40 mm
- C1: 8 mm
- C2: 24 mm
- Mounting Pitch (P): 48 mm
- Thread X: M6
- Width W: 47 mm
- Thread Y: M6
Applications
Suitable for:
- SFU2005 ball screw systems
- SFU2010 ball screw systems
- CNC routers
- CNC milling machines
- Plasma and laser cutting machines
- Industrial automation
- Linear positioning systems
- Custom CNC machine builds
Package Contents
- 1 × DSG20H Ball Nut Housing
Important
Ball screw and ball nut are not included. This product is the metal housing only.
