TL-Q5MC1-Z Inductive Proximity Sensor NPN NO 5mm

TL-Q5MC1-Z Inductive Proximity Sensor NPN NO 5mm

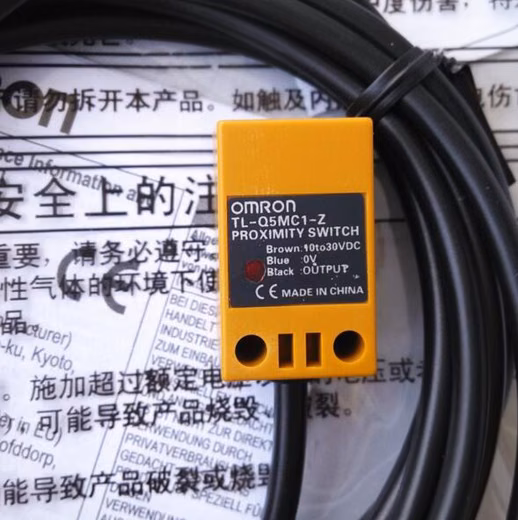

The TL-Q5MC1-Z is a compact inductive proximity sensor designed for reliable non-contact detection of metallic objects in CNC machines, industrial automation systems and positioning applications.

It features an NPN Normally Open (NO) output, a sensing distance of approximately 5 mm, and operates from 10–30V DC. Its rectangular body makes it easy to install on machine frames, axis assemblies and automation fixtures.

Key Features

• Inductive proximity sensing
• NPN output
• Normally Open (NO) switching
• 5 mm sensing distance
• DC 10–30V operating voltage
• 3-wire connection
• Compact rectangular body
• Non-contact metal detection
• Fast and repeatable switching
• Suitable for CNC homing and limit detection
• No mechanical wear
• Suitable for industrial automation applications

Technical Specifications

• Model: TL-Q5MC1-Z
• Product Type: Inductive Proximity Sensor
• Output Type: NPN
• Switching Type: Normally Open (NO)
• Detection Distance: approximately 5 mm
• Operating Voltage: DC 10–30V
• Connection Type: 3-Wire
• Detection Target: Metallic Objects
• Sensor Body: Rectangular
• Typical Protection Class: IP67
• Typical Response Frequency: approximately 500 Hz

Typical Wiring

• Brown Wire: +10–30V DC
• Blue Wire: 0V / Ground
• Black Wire: Signal Output

Applications
Suitable for:

• CNC machine limit sensing
• CNC homing and reference positioning
• X, Y and Z axis detection
• Plasma cutting machines
• CNC routers
• Milling and engraving machines
• Industrial automation
• Production machinery
• Metal object detection

Advantages
Because it operates without physical contact, the sensor provides long service life and avoids the mechanical wear associated with conventional limit switches.

Package Contents

• 1 × TL-Q5MC1-Z Inductive Proximity Sensor
• Attached connection cable
