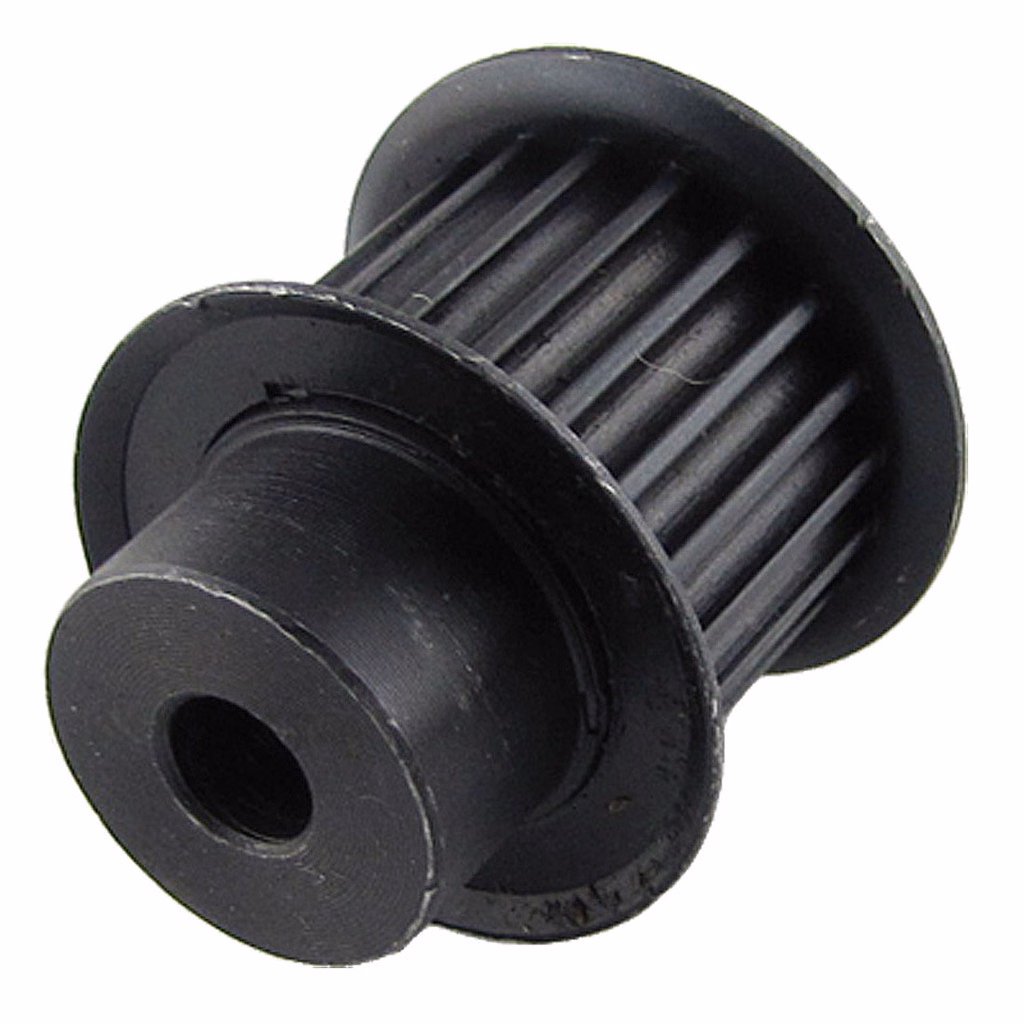

HTD 5M Timing Pulley 20 Teeth 20mm Width 12mm Bore

HTD 5M Timing Pulley 20 Teeth 20mm Width 12mm Bore

This HTD 5M timing pulley is designed for synchronous power transmission in CNC machines, motor systems and industrial automation. It provides positive engagement with compatible HTD 5M timing belts, helping maintain accurate motion transfer without belt slippage.

This version features 20 teeth, supports a 20 mm wide belt, and has a 12 mm bore for mounting on compatible motor or transmission shafts.

Key Features

• HTD 5M timing pulley
• 20 teeth
• 20 mm belt width
• 12 mm bore
• 5 mm tooth pitch
• Suitable for synchronous power transmission
• Positive engagement with HTD 5M belts
• Helps reduce slip and maintain accurate motion
• Set-screw shaft fixing
• Strong metal construction
• Suitable for CNC and automation applications

Technical Specifications

• Product Type: Timing Pulley
• Profile: HTD 5M
• Number of Teeth: 20
• Tooth Pitch: 5 mm
• Compatible Belt Width: 20 mm
• Bore Diameter: 12 mm
• Shaft Fixing: Set Screws
• Application: CNC / Motor Drive / Power Transmission
• Compatible Belt Type: HTD 5M

Applications
Suitable for:

• CNC machines
• Stepper motor drives
• Servo motor drives
• Ball screw drive systems
• Linear motion systems
• Industrial automation
• Custom mechanical transmission systems

Compatibility
Designed for use with compatible HTD 5M timing belts up to 20 mm width.

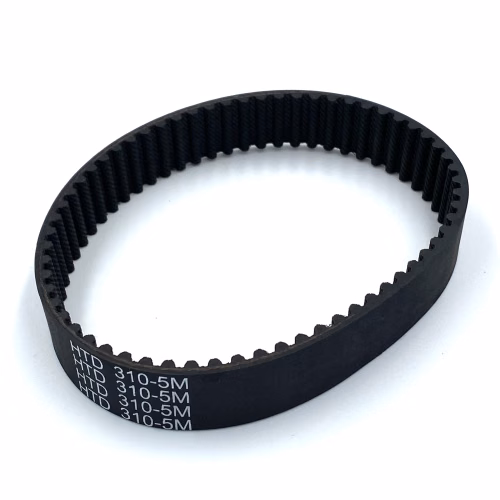

It can be used with the HTD 310-5M 20 mm timing belt when the machine design requires a 20-tooth pulley.
