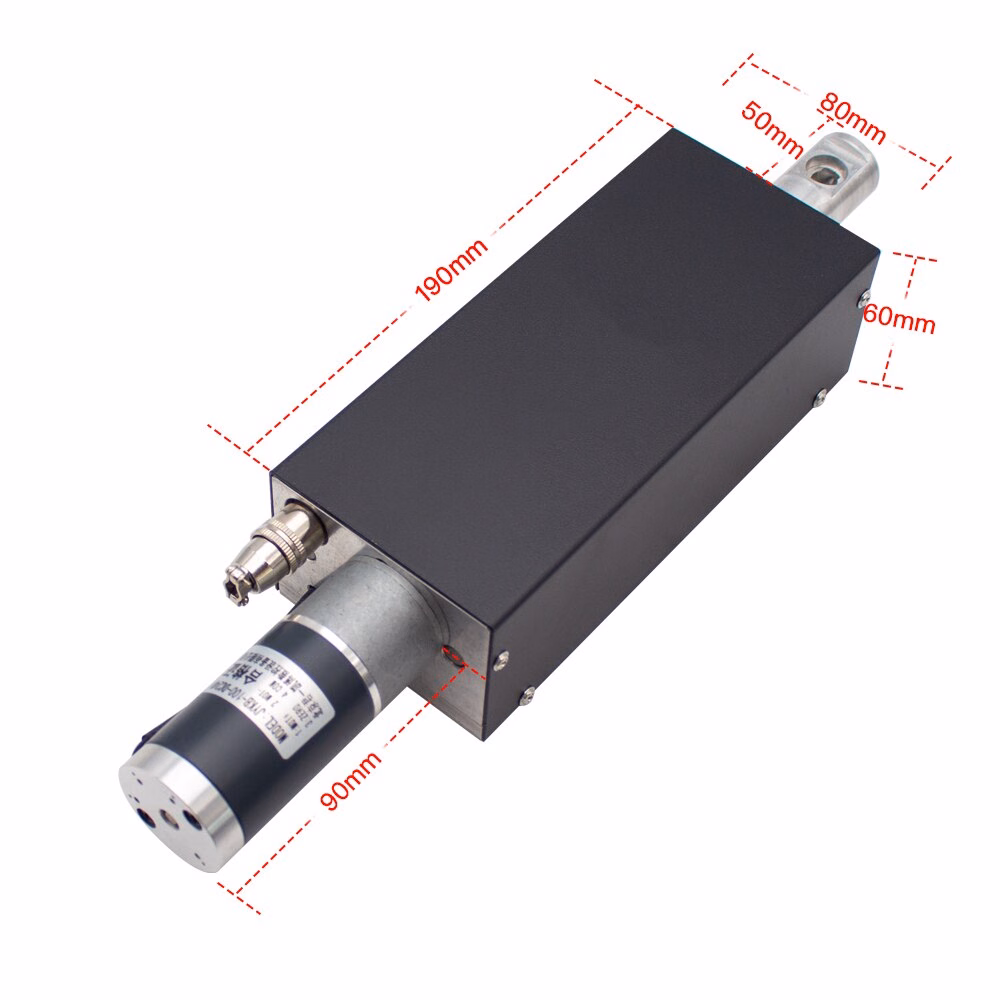

CNC Plasma THC Z-Axis Lifter 100mm DC24V
Heavy-duty Z-axis lifter for CNC plasma torch height control systems, featuring up to 100 mm stroke, DC 24V operation, 38 mm torch clamp range and 3–10 kg load capacity.
- Cash on delivery
- Pay when your order arrives
- Delivery available
- Cost confirmed at checkout
Product details
CNC Plasma THC Z-Axis Lifter 100mm DC24V
This heavy-duty Z-axis lifter is designed for CNC plasma cutting systems and torch height control applications. It provides smooth vertical movement of the plasma torch and works together with a THC controller to maintain the correct cutting height during operation.
Key Features
- Designed for CNC plasma torch height control systems
- Maximum stroke up to 100 mm
- DC 24V operation
- Working current: 2A
- 38 mm torch chuck/clamp range
- Load capacity from 3 kg to 10 kg
- Compact and rigid mechanical structure
- Suitable for automatic torch up/down movement
- Ideal for integration with THC controllers
- Suitable for retrofit and new CNC plasma machine builds
Technical Specifications
- Product Type: CNC Plasma Z-Axis Lifter
- Application: Plasma Torch Height Control
- Stroke: ≤100 mm
- Voltage: DC 24V
- Working Current: 2A
- Chuck Range: 38 mm
- Load Capacity: 3–10 kg
- Body Length: approximately 185 mm
- Motor Section Length: approximately 100 mm
- Mounting Hole Spacing: approximately 53 mm
- Mounting Width: approximately 39 mm
Applications
Suitable for CNC plasma tables, automatic plasma cutting machines, portable CNC plasma systems and THC retrofit projects where reliable vertical torch movement is required.
Compatibility
Can be used with compatible torch height controllers and CNC plasma control systems that support 24V DC lifter operation.
