100mm CNC Spindle Motor Holder Clamp

100mm CNC Spindle Motor Holder Clamp

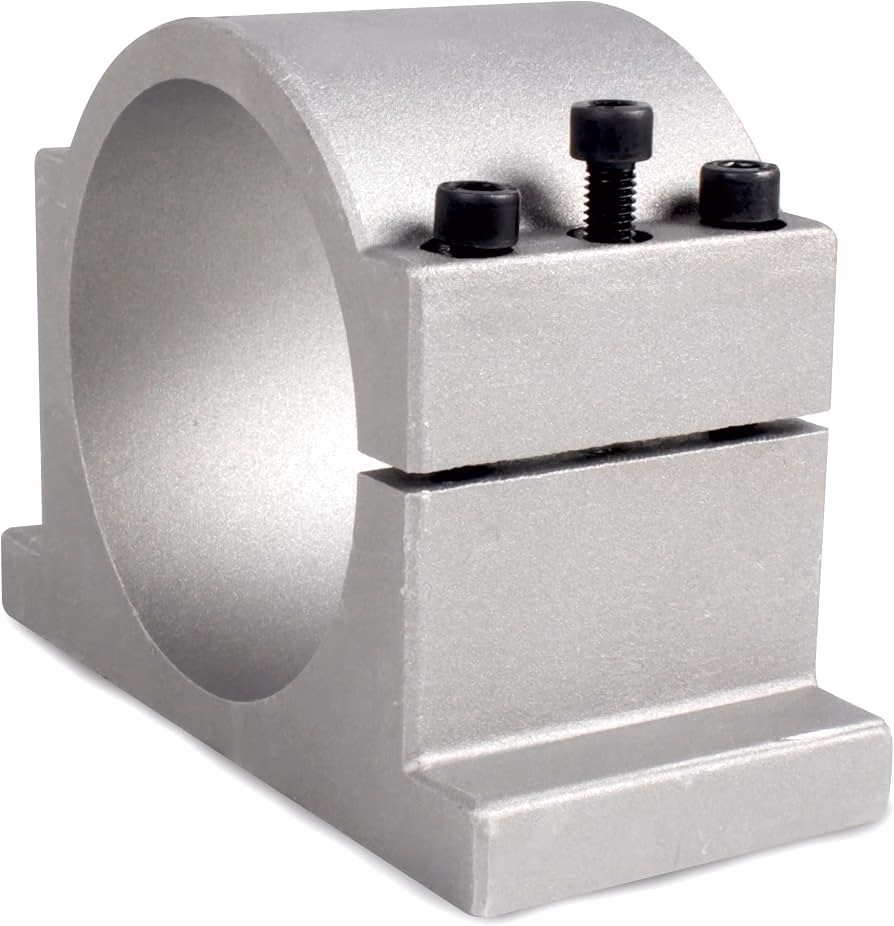

This 100 mm spindle motor holder is designed to securely mount cylindrical CNC spindle motors onto router, engraving and milling machine frames. Its split-clamp construction allows the spindle body to be tightened firmly while maintaining stable alignment during operation.

The rigid aluminum body provides a strong mounting solution for high-speed spindle applications and helps reduce unwanted movement and vibration.

Key Features

• 100 mm internal diameter
• Designed for 100 mm spindle motor bodies
• Strong aluminum alloy construction
• Split-clamp design for secure spindle mounting
• Easy tightening with upper clamping bolts
• Rigid base for machine-frame installation
• Helps maintain spindle alignment
• Suitable for high-speed CNC spindle applications
• Compact and durable design
• Ideal for CNC routers, engraving machines and custom CNC builds

Technical Specifications

• Product Type: CNC Spindle Motor Holder / Clamp
• Internal Diameter: 100 mm
• Material: Aluminum Alloy
• Mounting Type: Split Clamp
• Base Mounting: Machine Frame / Z-Axis Plate
• Application: CNC Spindle Motor Installation
• Compatible Spindle Body Diameter: 100 mm

Approximate Dimensions

• Inner Diameter: 100 mm
• Main Body Length: approximately 130 mm
• Side Section: approximately 83 mm
• Base Edge Thickness: approximately 19 mm
• Body Height: approximately 74 mm

Applications
Suitable for:

• CNC routers
• CNC engraving machines
• CNC milling machines
• Woodworking CNC systems
• Aluminum machining systems
• Custom spindle mounting assemblies
• Industrial automation equipment

Package Contents

• 1 × 100 mm CNC Spindle Motor Holder Clamp

Compatibility Note
Please verify that your spindle body has an external diameter of 100 mm before ordering.
